Product Special storage

Product Special storage

Special design: Recumbent storage

Example specification

  • Volume of 5,665 l
  • Material: S235JR
  • Weight: 721 kg
  • Operating temperature: -10°C to 50°C
  • Operating / test overpressure: 6 / 9 bar
  • Surface outside: zinc dust
  • Surface inside: raw


  • synth. Rubber 19 mm
  • Factory mounting

Memory application areas

  • Most used storage tank sizes from 2,000 to 15,000 liters
  • Buffer storage for hot water
  • Drinking water and domestic hot water tanks
  • Hygienic storage tank
  • Heat pump storage
  • Cold Storage
  • Combi and compact storage
  • Special Buffer storage from 15.000 to 150.000 liters
  • When space is at a premium: horizontal storage solutions

Special storage

can be produced in all sizes and variants – with any temperature in the heat and Cold applications through heatStixx

All advantages at a glance

  • Customized Special storage for small and large series production
  • Independent and flexible storage production
  • Many years of expertise in renewable energy
  • Guaranteed professional and timely implementation for small and large projects

Special storage is manufactured individually according to your specifications.
Storage capacity from 300 liters up to 70,000 liters, diameter from 400 mm to 3000 mm possible.

Memory equipment features

  • Connection sleeves from 1/2″ to 4″ IT AG
  • Connection flanges according to DIN standards DN 40-150
  • Inspection flanges up to DN 500
  • Operating pressure from 3 – 12 bar – secured test pressure by 1.5 times
  • Max. Operating temperature up to 95°C
  • Quality steel according to EN 10025, S235JR
  • Qualified welding process according to ISO 15614-1
  • Special coatings of all kinds e.g. enameled, galvanized
  • Optimal thermal or cold insulation
  • Further special adaptations such as connections and add-on and built-in parts can be added
We manufacture for you – everything from a single source Customized storage solution from design to manufacturing. Together we will find the optimal solution for your requirements.

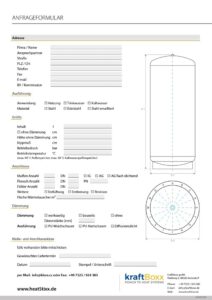

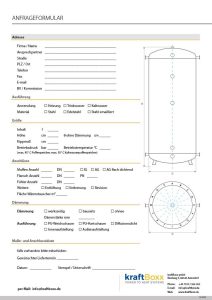

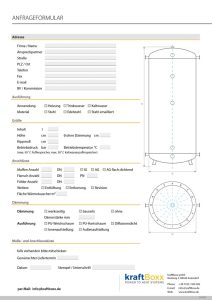

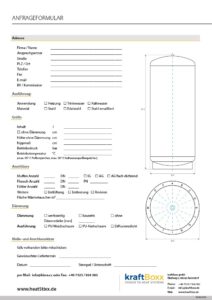

Special storage Inquiry form
Fillable Online PDF
